RV Black Water Tank
Leak Free, Custom Fitted
One Clarion is your ultimate solution for well-priced RV black water tanks that fit precisely and stand the test of time. We know that having reliable and well-designed black water and custom RV holding tanks is important to you. These top-quality tanks are highly impact resistant and are engineered specially to contain waste securely, providing you with hassle-free and sanitary travels.
Experience unmatched strength and durability with our exceptional tanks, crafted using a roto-mold process and virgin polyethylene plastic resins. Designed as a single, seamless unit, our RV black water tanks ensure superior performance, eliminating concerns about contamination or leaks. Rely on our long-lasting tanks, meticulously engineered for endurance. To support a flawless installation, you have the option to customize these tanks by selecting the fitting locations for a perfect fit.
See below for a full listing of customizable sizes, including a diagram of each black water RV tank.
Specifications and Diagrams of Black Water RV Tanks
See the charts below, grouped by the shape needed for your customized RV holding tank. The charts indicate the capacities (gallons), dimensions, and include a diagram of the black water rv tank.
RV Black Water Tanks
Bottom Dump Waste Tanks
| Part No. | Capacity | Length | Width | Depth | Drawings |
| H-220 | 11 gallons | 64 | 6 | 8.25 | Drawing (pdf) |
| H-263 | 11 gallons | 74 | 5.75 | 8.75 | Drawing (pdf) |
| H-249 | 14 gallons | 31.5 | 17 | 8.75 | Drawing (pdf) |
| H-229 | 15 gallons | 37 | 16 | 7.5 | Drawing (pdf) |
| H-572 | 24 gallons | 73.75 | 11.5 | 9 | Drawing (pdf) |
| H-510 | 25 gallons | 46 | 15 | 9.5 | Ask for details |
| H-224 | 25 gallons | 75.75 | 8 | 13 | Drawing (pdf) |
| H-223 | 27 gallons | 76 | 16 | 13 | Drawing (pdf) |
| H-251 | 35 gallons | 52 | 24 | 8.5 | Drawing (pdf) |
| H-286 | 35 gallons | 76 | 11 | 12.75 | Drawing (pdf) |
| H-277 | 38 gallons | 28.25 | 23.25 | 14 | Drawing (pdf) |
| H-280 | 40 gallons | 27.5 | 23.5 | 14 | Drawing (pdf) |
| H-317 | 40 gallons | 79 | 11 | 13 | Drawing (pdf) |
| H-312 | 40 gallons | 90 | 33.5 | 12 | Drawing (pdf) |
| H-276 | 43 gallons | 84 | 11 | 13 | Drawing (pdf) |
| H-418 | 43 gallons | 85 | 17.5 | 9.75 | Drawing (pdf) |
| H-432 | 44 gallons | 65 | 15.25 | 12 | Drawing (pdf) |
| H-354 | 44 gallons | 78 | 12.5 | 13 | Drawing (pdf) |
| H-359 | 47 gallons | 68 | 27.25 | 7.5 | Drawing (pdf) |
| H-311 | 48 gallons | 80 | 20 | 12 | Drawing (pdf) |
| H-437 | 51 gallons | 85 | 17.5 | 11.25 | Drawing (pdf) |
| H-226 | 52 gallons | 84 | 13.25 | 13 | Drawing (pdf) |
| H-316 | 55 gallons | 79 | 15.5 | 13 | Drawing (pdf) |
| H-281 | 59 gallons | 42 | 27.25 | 13 | Drawing (pdf) |
| H-375 | 60 gallons | 79.75 | 16.25 | 13.25 | Drawing (pdf) |
| H-275 | 62 gallons | 84 | 15.5 | 13 | Drawing (pdf) |
| H-419 | 63 gallons | 85 | 24.75 | 9.75 | Drawing (pdf) |
| H-287 | 65 gallons | 76 | 20 | 12.75 | Drawing (pdf) |
| H-353 | 66 gallons | 78 | 18.5 | 13 | Drawing (pdf) |
| H-304 | 66 gallons | 85 | 21 | 11.75 | Drawing (pdf) |
| H-433 | 70 gallons | 65 | 22.75 | 12 | Drawing (pdf) |
| H-227 | 72 gallons | 84.25 | 18 | 13 | Drawing (pdf) |
| H-436 | 73 gallons | 85 | 24.75 | 11.25 | Drawing (pdf) |
| H-362 | 90 gallons | 79.75 | 24 | 13.25 | Drawing (pdf) |
| H-422 | 110 gallons | 63 | 24.75 | 17.75 | Ask for details |
RV Black Water Tanks
End Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawings |
| H-545 | 6 gallons | 38.375 | 15 | 3.5 | Ask for details |
| H-273 | 8 gallons | 15 | 17 | 8 | Drawing (pdf) |
| H-135 | 8 gallons | 22.75 | 12.75 | 7.5 | Drawing (pdf) |
| H-128 | 9 gallons | 32.5 | 15 | 6.5 | Drawing (pdf) |
| H-256 | 9 gallons | 35 | 11.75 | 6 | Drawing (pdf) |
| H-491 | 9 gallons | 82 | 6 | 6.75 | Ask for details |
| H-565 | 9 gallons | 84.25 | 8 | 8.5 | Drawing (pdf) |
| H-380 | 10 gallons | 43.5 | 15 | 5.75 | Drawing (pdf) |
| H-384 | 10 gallons | 43.5 | 15 | 5.75 | Drawing (pdf) |
| H-325 | 10 gallons | 61.5 | 8 | 8.5 | Drawing (pdf) |
| H-493 | 10 gallons | 68 | 8 | 7.625 | Drawing (pdf) |
| H-219S | 10 gallons | 70 | 5.5 | 15 | Drawing (pdf) |
| H-219L | 12 gallons | 88 | 5.5 | 15 | Drawing (pdf) |
| H-131 | 15 gallons | 58 | 14.25 | 6 | Drawing (pdf) |
| H-379 | 16 gallons | 56 | 10 | 8.5 | Drawing (pdf) |
| H-307 | 16 gallons | 65 | 20 | 4.5 | Drawing (pdf) |
| H-253 | 17 gallons | 30 | 20 | 8 | Drawing (pdf) |
| H-566 | 18 gallons | 30 | 19.875 | 8.75 | Drawing (pdf) |
| H-244 | 19 gallons | 54 | 22 | 6.5 | Drawing (pdf) |
| H-567 | 19 gallons | 76 | 16 | 5 | Drawing (pdf) |
| H-96 | 20 gallons | 26 | 19.75 | 11 | Drawing (pdf) |
| H-448 | 20 gallons | 42 | 29.5 | 5.25 | Drawing (pdf) |
| H-502 | 20 gallons | 48 | 16 | 8 | Drawing (pdf) |
| H-424 | 20 gallons | 61 | 14.75 | 6.5 | Drawing (pdf) |
| H-551 | 21 gallons | 32 | 17 | 10.75 | Drawing (pdf) |
| H-571 | 21 gallons | 61 | 11 | 9 | Drawing (pdf) |
| H-454 | 21 gallons | 95 | 13.75 | 7.5 | Drawing (pdf) |
| H-294 | 22 gallons | 40 | 20 | 8 | Drawing (pdf) |
| H-272 | 23 gallons | 38 | 25.5 | 6.5 | Drawing (pdf) |
| H-298 | 23 gallons | 43 | 10.5 | 13 | Drawing (pdf) |
| H-447 | 23 gallons | 68 | 20 | 5.25 | Drawing (pdf) |
| H-103 | 24 gallons | 76 | 11 | 8.5 | Drawing (pdf) |
| H-521 | 24 gallons | 93.25 | 13.625 | 7.1875 | Ask for details |
| H-278 | 25 gallons | 38 | 26 | 7.5 | Drawing (pdf) |
| H-295 | 25 gallons | 42 | 20 | 8 | Drawing (pdf) |
| H-453S | 25 gallons | 82 | 13 | 7.5 | Drawing (pdf) |
| H-560 | 26 gallons | 73.75 | 12 | 9 | Drawing (pdf) |
| H-444 | 26 gallons | 81.5 | 14.5 | 6.25 | Drawing (pdf) |
| H-21 | 27 gallons | 44 | 13.25 | 12.5 | Drawing (pdf) |
| H-356 | 27 gallons | 82 | 16 | 6 | Drawing (pdf) |
| H-453L | 27 gallons | 94 | 13 | 7.5 | Drawing (pdf) |
| H-558 | 28 gallons | 55 | 13.625 | 9.875 | Drawing (pdf) |
| H-217 | 29 gallons | 74.25 | 21.25 | 6.5 | Drawing (pdf) |
| H-270 | 30 gallons | 50.5 | 20 | 8 | Drawing (pdf) |
| H-449 | 30 gallons | 54 | 43.75 | 5.75 | Drawing (pdf) |
| H-476 | 30 gallons | 90 | 16 | 6 | Ask for details |
| H-237 | 30 gallons | 98 | 16 | 6 | Drawing (pdf) |
| H-562 | 31 gallons | 58 | 22 | 8 | Drawing (pdf) |
| H-67 | 32 gallons | 36 | 36 | 7.25 | Drawing (pdf) |
| H-531 | 32 gallons | 96 | 14.5 | 8 | Drawing (pdf) |
| H-370 | 34 gallons | 104 | 10 | 9 | Drawing (pdf) |
| H-420 | 35 gallons | 104 | 17.25 | 6 | Drawing (pdf) |
| H-305 | 35 gallons | 47 | 26.5 | 9 | Drawing (pdf) |
| H-215 | 36 gallons | 48 | 36 | 7 | Drawing (pdf) |
| H-388 | 38 gallons | 54.75 | 21.5 | 9.25 | Drawing (pdf) |
| H-218 | 38 gallons | 68.25 | 21.25 | 8 | Drawing (pdf) |
| H-536 | 38 gallons | 90 | 16 | 8.5 | Drawing (pdf) |
| H-498 | 42 gallons | 60 | 30 | 7.25 | Drawing (pdf) |
| H-432 | 44 gallons | 65 | 15.25 | 12 | Drawing (pdf) |
| H-570 | 47 gallons | 48 | 27 | 15 | Drawing (pdf) |
| H-359 | 47 gallons | 68 | 27.25 | 7.5 | Drawing (pdf) |
| H-515 | 48 gallons | 44 | 29 | 11 | Ask for details |
| H-514 | 50 gallons | 38 | 35 | 11 | Drawing (pdf) |
| H-361 | 50 gallons | 42 | 32 | 10.5 | Drawing (pdf) |
| H-257 | 51 gallons | 30 | 26 | 16 | Drawing (pdf) |
| H-284 | 55 gallons | 42 | 27.25 | 13 | Drawing (pdf) |
| H-303 | 55 gallons | 51 | 27.25 | 14 | Drawing (pdf) |
| H-85 | 55 gallons | 51.75 | 28 | 10 | Drawing (pdf) |
| H-266 | 56 gallons | 60 | 29.5 | 13 | Drawing (pdf) |
| H-484 | 56 gallons | 60 | 30 | 9 | Ask for details |
| H-421 | 56 gallons | 65 | 20.25 | 17.75 | Drawing (pdf) |
| H-365 | 60 gallons | 60.25 | 21 | 13 | Drawing (pdf) |
| H-260 | 60 gallons | 65 | 26 | 13 | Drawing (pdf) |
| H-143 | 60 gallons | 72 | 16 | 14.5 | Drawing (pdf) |
| H-569 | 76 gallons | 48 | 15 | 27 | Drawing (pdf) |
| H-265 | 77 gallons | 60 | 29.5 | 13 | Drawing (pdf) |
| H-540 | 78 gallons | 50 | 50 | 8.625 | Drawing (pdf) |
| H-259 | 82 gallons | 65 | 29.5 | 13 | Ask for details |
| H-390 | 82 gallons | 80 | 15 | 19.5 | Drawing (pdf) |
| H-144 | 93 gallons | 72.25 | 24 | 14.5 | Drawing (pdf) |
| H-310 | 104 gallons | 57 | 28 | 20 | Drawing (pdf) |
| H-165 | 110 gallons | 65 | 21 | 13 | Drawing (pdf) |
| H-165M | 110 gallons | 65 | 21 | 21.5 | Drawing (pdf) |
| H-166 | 115 gallons | 60.25 | 24 | 20 | Drawing (pdf) |
| H-366 | 120 gallons | 65 | 24 | 20 | Drawing (pdf) |
| H-331 | 123 gallons | 100 | 32 | 11 | Drawing (pdf) |
| H-313 | 135 gallons | 83 | 37 | 19 | Drawing (pdf) |
| H-360 | 170 gallons | 58 | 24 | 30 | Drawing (pdf) |
| H-543 | 250 gallons | 72 | 48 | 19 | Drawing (pdf) |
RV Black Water Tanks

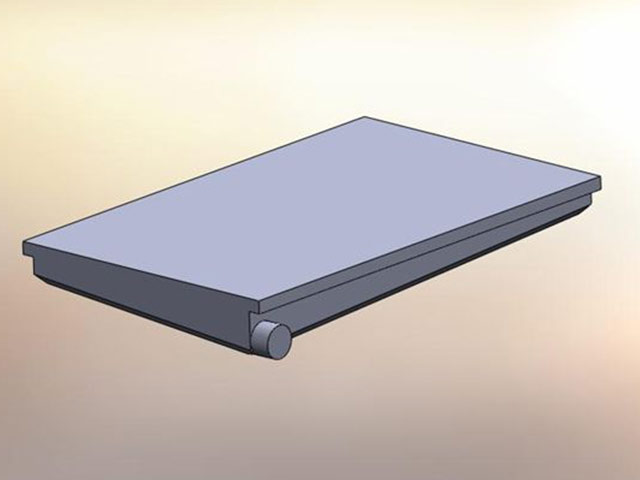

End Dump Holding Tanks with Rails
| Part No. | Capacity | Length | Width | Depth | Drawings |
| H-130 | 12 gallons | 18 | 17.75 | 14.25 | Drawing (pdf) |
| H-79 | 15 gallons | 60 | 11.75 | 7.75 | Drawing (pdf) |
| H-59 | 17 gallons | 71.25 | 14.75 | 6.5 | Drawing (pdf) |
| H-28 | 20 gallons | 34 | 15 | 12 | Drawing (pdf) |
| H-42 | 21 gallons | 36 | 21 | 7.5 | Drawing (pdf) |
| H-201 | 22 gallons | 50.5 | 17.25 | 8.75 | Drawing (pdf) |
| H-34 | 23 gallons | 33.75 | 20 | 9.5 | Drawing (pdf) |
| H-47 | 24 gallons | 54.75 | 21 | 7.5 | Drawing (pdf) |
| H-65 | 23 gallons | 30 | 21 | 11 | Drawing (pdf) |
| H-330 | 25 gallons | 31 | 27 | 9.5 | Drawing (pdf) |
| H-55 | 25 gallons | 51 | 23.75 | 9 | Drawing (pdf) |
| H-355 | 25 gallons | 54 | 32 | 5.75 | Drawing (pdf) |
| H-72 | 21 gallons | 59.25 | 16 | 8.5 | Drawing (pdf) |
| H-205 | 27 gallons | 26.75 | 20 | 8.5 | Drawing (pdf) |
| H-213 | 27 gallons | 55 | 23.75 | 7.75 | Drawing (pdf) |
| H-3 | 27 gallons | 55 | 24 | 7 | Drawing (pdf) |
| H-204 | 27 gallons | 57 | 20 | 9 | Drawing (pdf) |
| H-57 | 25 gallons | 64 | 18 | 7.5 | Drawing (pdf) |
| H-368 | 29 gallons | 48 | 38 | 5.5 | Drawing (pdf) |
| H-64 | 30 gallons | 30 | 25 | 11 | Drawing (pdf) |
| H-24 | 30 gallons | 35.75 | 24 | 10 | Drawing (pdf) |
| H-339 | 30 gallons | 55 | 22 | 10 | Drawing (pdf) |
| H-584 | 31 gallons | 54 | 22 | 8 | Drawing (pdf) |
| H-463 | 31 gallons | 60 | 23 | 7.75 | Ask for details |
| H-393 | 32 gallons | 43 | 23 | 10.25 | Drawing (pdf) |
| H-206 | 32 gallons | 55 | 20.25 | 9.5 | Drawing (pdf) |
| H-52 | 32 gallons | 67.5 | 20 | 7.75 | Drawing (pdf) |
| H-464 | 34 gallons | 60 | 23 | 7.75 | Ask for details |
| H-305 | 35 gallons | 47 | 26.5 | 9 | Drawing (pdf) |
| H-512 | 34 gallons | 55 | 24 | 10.5 | Drawing (pdf) |
| H-45 | 35 gallons | 49.25 | 27 | 8.5 | Drawing (pdf) |
| H-51 | 35 gallons | 67.5 | 26 | 7.75 | Drawing (pdf) |
| H-252 | 36 gallons | 45 | 22 | 10.5 | Drawing (pdf) |
| H-6 | 37 gallons | 48.5 | 25 | 9 | Drawing (pdf) |
| H-334 | 39 gallons | 54.75 | 27 | 8.75 | Drawing (pdf) |
| H-14 | 39 gallons | 55 | 26.5 | 9 | Drawing (pdf) |
| H-7 | 40 gallons | 54.5 | 26.5 | 9 | Drawing (pdf) |
| H-308 | 40 gallons | 54.75 | 27 | 9 | Drawing (pdf) |
| H-333 | 40 gallons | 55 | 32 | 10 | Drawing (pdf) |
| H-501 | 40 gallons | 56 | 28.5 | 8.25 | Drawing (pdf) |
| H-290 | 40 gallons | 56.5 | 24.5 | 8.75 | Ask for details |
| H-364 | 40 gallons | 57 | 25 | 9.5 | Drawing (pdf) |
| H-383 | 40 gallons | 57 | 42 | 7 | Drawing (pdf) |
| H-513 | 40 gallons | 60 | 27 | 10 | Ask for details |
| H-507 | 40 gallons | 84 | 27 | 6.5 | Drawing (pdf) |
| H-225 | 44 gallons | 61 | 31.25 | 8.5 | Drawing (pdf) |
| H-407 | 45 gallons | 58 | 25 | 8.75 | Drawing (pdf) |
| H-371 | 50 gallons | 53 | 27 | 10 | Drawing (pdf) |
| H-516 | 50 gallons | 69 | 29 | 8.25 | Ask for details |
| H-363 | 55 gallons | 60 | 35 | 9.25 | Drawing (pdf) |
| H-17 | 55 gallons | 70 | 27 | 8.75 | Ask for details |
RV Black Water Tanks
L-Shaped End Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-235 | 9 gallons | 28 | 17.5 | 6 | Drawing (pdf) |
| H-232 | 10 gallons | 30 | 16 | 6.25 | Drawing (pdf) |
| H-435 | 13 gallons | 30 | 20 | 8 | Drawing (pdf) |
| H-236 | 15 gallons | 72.5 | 15 | 6 | Drawing (pdf) |
| H-234 | 18 gallons | 28 | 27 | 6.5 | Drawing (pdf) |
| H-238 | 19 gallons | 71.5 | 18 | 5 | Drawing (pdf) |
| H-522 | 19 gallons | 97.4375 | 16.375 | 7.625 | Drawing (pdf) |
| H-520 | 20 gallons | 103.4375 | 16.375 | 7.625 | Drawing (pdf) |
| H-568 | 20 gallons | 44 | 41.5 | 6 | Drawing (pdf) |
| H-236D | 20 gallons | 72.5 | 15 | 7.5 | Ask for details |
| H-398 | 22 gallons | 38.25 | 44 | 7.75 | Drawing (pdf) |
| H-537 | 23 gallons | 47.75 | 23.25 | 10.5 | Drawing (pdf) |
| H-40 | 24 gallons | 36 | 20 | 12.75 | Drawing (pdf) |
| H-367 | 25 gallons | 42 | 44 | 7.75 | Drawing (pdf) |
| H-509 | 25 gallons | 42.5625 | 25.0625 | 7.25 | Ask for details |
| H-238D | 25 gallons | 71.5 | 18 | 6.5 | Ask for details |
| H-460 | 26 gallons | 37 | 30.5 | 7.5 | Ask for details |
| H-549 | 26 gallons | 54.5 | 19 | 13.375 | Ask for details |
| H-538 | 31 gallons | 103 | 34 | 8.5 | Drawing (pdf) |
| H-348S | 32 gallons | 57 | 44 | 8 | Drawing (pdf) |
| H-369 | 34 gallons | 80 | 33 | 9.5 | Drawing (pdf) |
| H-539 | 37 gallons | 104 | 28.5 | 10.5 | Drawing (pdf) |
| H-534 | 39 gallons | 104 | 18.5 | 6.25 | Drawing (pdf) |
| H-417 | 40 gallons | 57 | 58 | 8 | Drawing (pdf) |
| H-535 | 41 gallons | 104 | 18.5 | 6.25 | Drawing (pdf) |
| H-345 | 41 gallons | 80 | 36 | 6.75 | Drawing (pdf) |
| H-533 | 43 gallons | 53 | 36.25 | 10.5 | Drawing (pdf) |
| H-84 | 50 gallons | 60 | 27 | 11.5 | Ask for details |
| H-314 | 71 gallons | 77 | 34.75 | 9.75 | Drawing (pdf) |
| H-458 | 74 gallons | 57.5 | 19.25 | 20 | Drawing (pdf) |
| H-459 | 103 gallons | 57.5 | 26.5 | 20 | Ask for details |
RV Black Water Tanks
L-Shaped Side Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-302 | 13 gallons | 65.75 | 22.75 | 6 | Drawing (pdf) |
| H-301 | 16 gallons | 73.5 | 34.25 | 6 | Drawing (pdf) |
| H-429 | 20 gallons | 80 | 40.5 | 6 | Drawing (pdf) |
| H-285 | 24 gallons | 50 | 22 | 8.75 | Drawing (pdf) |
| H-475 | 26 gallons | 44 | 38.25 | 8 | Ask for details |
| H-233 | 35 gallons | 74 | 33.5 | 6 | Drawing (pdf) |
| H-109 | 40 gallons | 76 | 27 | 10 | Drawing (pdf) |
| H-425 | 45 gallons | 93 | 30 | 8.5 | Drawing (pdf) |
RV Black Water Tanks
Recessed End Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-326 | 9 gallons | 31.5 | 15.5 | 8 | Drawing (pdf) |
| H-27 | 10 gallons | 31.25 | 6.5 | 8.5 | Drawing (pdf) |
| H-327 | 10 gallons | 46 | 16.5 | 8.5 | Drawing (pdf) |
| H-306 | 11 gallons | 18.5 | 14.25 | 15.5 | Drawing (pdf) |
| H-322 | 12 gallons | 53 | 11 | 8 | Drawing (pdf) |
| H-573 | 13 gallons | 19.75 | 17.75 | 13.5 | Drawing (pdf) |
| H-552 | 14 gallons | 25 | 19.5 | 9.125 | Ask for details |
| H-382 | 14 gallons | 67 | 11 | 8 | Drawing (pdf) |
| H-271 | 16 gallons | 72.5 | 11 | 8.5 | Drawing (pdf) |
| H-274 | 16 gallons | 79.5 | 11 | 8 | Drawing (pdf) |
| H-381 | 18 gallons | 67 | 11 | 8 | Drawing (pdf) |
| H-328 | 18 gallons | 68 | 14 | 8 | Drawing (pdf) |
| H-248 | 18 gallons | 70.75 | 12 | 7.5 | Drawing (pdf) |
| H-323 | 19 gallons | 68 | 12.25 | 8.5 | Drawing (pdf) |
| H-337 | 20 gallons | 68 | 15 | 8.5 | Drawing (pdf) |
| H-261 | 20 gallons | 71 | 15 | 8.5 | Drawing (pdf) |
| H-321 | 20 gallons | 96 | 11 | 7.5 | Drawing (pdf) |
| H-553 | 21 gallons | 24 | 19.5 | 12.75 | Drawing (pdf) |
| H-556 | 21 gallons | 24.0625 | 20.4375 | 14.25 | Drawing (pdf) |
| H-338 | 24 gallons | 68 | 15 | 8 | Drawing (pdf) |
| H-555 | 27 gallons | 28 | 20 | 15 | Drawing (pdf) |
| H-20 | 27 gallons | 53 | 13 | 12 | Drawing (pdf) |
| H-247 | 27 gallons | 73.75 | 15 | 7.75 | Drawing (pdf) |
| H-97 | 30 gallons | 38.75 | 21.5 | 11.5 | Drawing (pdf) |
| H-91 | 30 gallons | 54.5 | 32 | 7 | Drawing (pdf) |
| H-37 | 35 gallons | 70 | 15 | 10 | Drawing (pdf) |
| H-315 | 40 gallons | 57 | 28 | 9 | Drawing (pdf) |
| H-351 | 44 gallons | 59 | 17 | 13 | Drawing (pdf) |
| H-486 | 47 gallons | 78 | 16.9375 | 11.375 | Ask for details |
| H-490 | 47 gallons | 81 | 17 | 11.625 | Ask for details |
| H-471 | 48 gallons | 54.25 | 20 | 13 | Ask for details |
| H-481 | 59 gallons | 78 | 20 | 11.375 | Ask for details |
| H-385 | 60 gallons | 76.5 | 14.75 | 16 | Ask for details |
| H-391 | 61 gallons | 80 | 13.75 | 20.5 | Ask for details |
| H-482 | 63 gallons | 78 | 23 | 11.375 | Ask for details |
| H-487 | 68 gallons | 78 | 23.5 | 11.375 | Ask for details |
| H-489 | 68 gallons | 81 | 23.5 | 11.625 | Ask for details |
| H-169 | 72 gallons | 90 | 20 | 11 | Drawing (pdf) |
| H-477 | 74 gallons | 57.5 | 48.5 | 9.25 | Ask for details |
| H-357 | 75 gallons | 76.5 | 13.5 | 21 | Drawing (pdf) |
| H-243 | 78 gallons | 85 | 13.25 | 18.5 | Ask for details |
| H-557 | 80 gallons | 37 | 22.5 | 25.625 | Drawing (pdf) |
| H-470 | 80 gallons | 56.75 | 48.75 | 7.75 | Ask for details |
| H-495 | 80 gallons | 58 | 24.5 | 17 | Ask for details |
| H-473 | 100 gallons | 63.75 | 23.5 | 19 | Ask for details |
RV Black Water Tanks
Recessed End Dump Holding Tanks w/Rails
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-586 | 12 gallons | 35.5 | 18 | 6 | Ask for details |
| H-587 | 19 gallons | 52 | 19 | 6 | Drawing (pdf) |
| H-577 | 23 gallons | 48 | 17.5 | 10 | Drawing (pdf) |
| H-508 | 35 gallons | 56 | 24 | 8.125 | Ask for details |
RV Black Water Tanks
Recessed Side Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-575 | 12 gallons | 19.75 | 17.75 | 10 | Drawing (pdf) |
RV Black Water Tanks
Recessed Side Dump Holding Tanks With Rails
RV Black Water Tanks
Side Dump Holding Tanks
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-542 | 9.5 gallons | 26.875 | 20.25 | 6.875 | Ask for details |
| H-574 | 10 gallons | 46.75 | 28 | 2.75 | Drawing (pdf) |
| H-324 | 11 gallons | 34.5 | 16.5 | 6.5 | Drawing (pdf) |
| H-576 | 11 gallons | 46.75 | 28 | 3.5 | Drawing (pdf) |
| H-559 | 14 gallons | 46 | 16 | 6 | Drawing (pdf) |
| H-564 | 18 gallons | 36.25 | 24.125 | 6 | Drawing (pdf) |
| H-428 | 21 gallons | 53 | 24 | 6 | Drawing (pdf) |
| H-550 | 24 gallons | 32 | 23 | 9.125 | Drawing (pdf) |
| H-423 | 25 gallons | 39 | 31 | 6.5 | Drawing (pdf) |
| H-561 | 29 gallons | 30.375 | 28.3125 | 9.75 | Drawing (pdf) |
| H-532 | 30 gallons | 110 | 14.5 | 6 | Drawing (pdf) |
| H-450S | 32 gallons | 38.75 | 46 | 6.5 | Drawing (pdf) |
| H-416 | 35 gallons | 104 | 17.25 | 6 | Drawing (pdf) |
| H-450L | 35 gallons | 42 | 46 | 6.5 | Drawing (pdf) |
| H-578 | 38 gallons | 72.5 | 22 | 6.5 | Drawing (pdf) |
| H-452 | 41 gallons | 83 | 16 | 10.25 | Drawing (pdf) |
| H-414 | 41 gallons | 85.5 | 16 | 10.75 | Drawing (pdf) |
| H-126 | 42 gallons | 42 | 27.25 | 10.5 | Drawing (pdf) |
| H-239 | 42 gallons | 42.5 | 27.25 | 10.5 | Drawing (pdf) |
| H-443 | 44 gallons | 85.5 | 22 | 10.25 | Drawing (pdf) |
| H-541 | 45 gallons | 55 | 50 | 6 | Ask for details |
| H-439 | 53 gallons | 84 | 20.5 | 9.75 | Drawing (pdf) |
| H-283 | 57 gallons | 42 | 27.25 | 13 | Drawing (pdf) |
| H-349 | 57 gallons | 70 | 24 | 10 | Drawing (pdf) |
| H-441 | 59 gallons | 85.5 | 22 | 10.25 | Drawing (pdf) |
| H-442 | 59 gallons | 85.5 | 22 | 10.25 | Drawing (pdf) |
| H-282 | 60 gallons | 60 | 27 | 11.5 | Drawing (pdf) |
| H-415 | 60 gallons | 85.5 | 24.5 | 10.75 | Drawing (pdf) |
| H-451 | 64 gallons | 83 | 24.5 | 10.25 | Drawing (pdf) |
| H-155 | 65 gallons | 85 | 22.75 | 12.5 | Drawing (pdf) |
| H-426 | 65 gallons | 87.5 | 22 | 11.25 | Drawing (pdf) |
| H-427 | 65 gallons | 87.5 | 22 | 11.25 | Drawing (pdf) |
| H-440 | 70 gallons | 84 | 25 | 9.75 | Drawing (pdf) |
| H-386 | 77 gallons | 87.5 | 22 | 13 | Drawing (pdf) |
| H-387 | 77 gallons | 87.5 | 22 | 13 | Drawing (pdf) |
| H-554 | 250 gallons | 72 | 48 | 19 | Drawing (pdf) |
RV Black Water Tanks
Side Dump Holding Tanks with Rails
| Part No. | Capacity | Length | Width | Depth | Drawing |
| H-82 | 18 gallons | 35.5 | 23.75 | 7.25 | Drawing (pdf) |
| H-299 | 18 gallons | 45.25 | 27.5 | 5.5 | Drawing (pdf) |
| H-530 | 19 gallons | 42 | 28 | 5.75 | Drawing (pdf) |
| H-523 | 20 gallons | 53 | 16.5 | 4.8125 | Drawing (pdf) |
| H-342 | 20 gallons | 55 | 20 | 7 | Drawing (pdf) |
| H-343 | 20 gallons | 55 | 20 | 7 | Drawing (pdf) |
| H-344 | 20 gallons | 55 | 47 | 6 | Ask for details |
| H-563 | 21 gallons | 48.5 | 22.5 | 6 | Drawing (pdf) |
| H-300 | 24 gallons | 52 | 17 | 8 | Drawing (pdf) |
| H-246 | 25 gallons | 56 | 40 | 8 | Drawing (pdf) |
| H-100 | 25 gallons | 58 | 32 | 6 | Drawing (pdf) |
| H-83 | 25 gallons | 58 | 32 | 6 | Drawing (pdf) |
| H-25 | 25 gallons | 59 | 27 | 5.5 | Drawing (pdf) |
| H-228 | 29 gallons | 64.75 | 17 | 7.75 | Ask for details |
| H-75 | 30 gallons | 43 | 20.5 | 12 | Drawing (pdf) |
| H-335 | 30 gallons | 52 | 29 | 8 | Drawing (pdf) |
| H-332 | 30 gallons | 55 | 35 | 7 | Drawing (pdf) |
| H-347 | 30 gallons | 53.75 | 28 | 6.5 | Ask for details |
| H-210 | 30 gallons | 56 | 36 | 6 | Drawing (pdf) |
| H-210M | 30 gallons | 56 | 36 | 6.5 | Drawing (pdf) |
| H-211 | 30 gallons | 56 | 36 | 6 | Drawing (pdf) |
| H-547 | 31 gallons | 60 | 30 | 6 | Drawing (pdf) |
| H-202 | 32 gallons | 54 | 28 | 7.75 | Drawing (pdf) |
| H-212 | 34 gallons | 54 | 28 | 7.25 | Drawing (pdf) |
| H-392 | 34 gallons | 54.25 | 28 | 7.25 | Drawing (pdf) |
| H-211M | 34 gallons | 56 | 36 | 6.5 | Ask for details |
| H-318 | 35 gallons | 55.5 | 30 | 7.5 | Drawing (pdf) |
| H-208 | 35 gallons | 56 | 28 | 8 | Drawing (pdf) |
| H-527 | 35 gallons | 59 | 28 | 8.125 | Drawing (pdf) |
| H-582 | 37 gallons | 61.875 | 24 | 8 | Drawing (pdf) |
| H-583 | 37 gallons | 61.875 | 24 | 8 | Drawing (pdf) |
| H-358 | 38 gallons | 56 | 30 | 7.5 | Drawing (pdf) |
| H-469 | 38 gallons | 60 | 24 | 8 | Ask for details |
| H-221 | 39 gallons | 55.75 | 30 | 8 | Drawing (pdf) |
| H-5 | 40 gallons | 52.5 | 24.25 | 9.25 | Drawing (pdf) |
| H-505 | 40 gallons | 53 | 34 | 7.75 | Drawing (pdf) |
| H-506 | 40 gallons | 53 | 34 | 7.75 | Drawing (pdf) |
| H-352 | 40 gallons | 55 | 32 | 10 | Drawing (pdf) |
| H-340 | 40 gallons | 55 | 35 | 7 | Drawing (pdf) |
| H-341 | 40 gallons | 55 | 47 | 6 | Drawing (pdf) |
| H-288 | 40 gallons | 56 | 30 | 7.75 | Drawing (pdf) |
| H-474 | 40 gallons | 56 | 40 | 8 | Ask for details |
| H-309 | 40 gallons | 57.75 | 42 | 6.75 | Drawing (pdf) |
| H-289 | 40 gallons | 58 | 38 | 7.75 | Drawing (pdf) |
| H-319 | 40 gallons | 59 | 28 | 8 | Drawing (pdf) |
| H-320 | 40 gallons | 59 | 28 | 8 | Drawing (pdf) |
| H-500 | 40 gallons | 65 | 24 | 8.25 | Drawing (pdf) |
| H-245 | 41 gallons | 56 | 40 | 8 | Drawing (pdf) |
| H-209 | 41 gallons | 56 | 32 | 7 | Drawing (pdf) |
| H-203 | 42 gallons | 54.25 | 28 | 9 | Drawing (pdf) |
| H-445 | 42 gallons | 54.5 | 26.5 | 9 | Drawing (pdf) |
| H-240 | 44 gallons | 57 | 42 | 7 | Drawing (pdf) |
| H-207 | 45 gallons | 56 | 40 | 7.75 | Drawing (pdf) |
| H-378 | 45 gallons | 56 | 45 | 5.25 | Drawing (pdf) |
| H-336 | 36 gallons | 57.25 | 32 | 9 | Drawing (pdf) |
| H-409 | 45 gallons | 58.5 | 45 | 5.25 | Drawing (pdf) |
| H-267 | 45 gallons | 60.5 | 33 | 9 | Drawing (pdf) |
| H-455 | 46 gallons | 58 | 25 | 10 | Drawing (pdf) |
| H-412 | 46 gallons | 64 | 31 | 8 | Drawing (pdf) |
| H-585 | 47 gallons | 61 | 26 | 9.5 | Drawing (pdf) |
| H-430 | 47 gallons | 61 | 36 | 7 | Drawing (pdf) |
| H-526 | 48 gallons | 48 | 36 | 6.75 | Drawing (pdf) |
| H-446 | 50 gallons | 54 | 35 | 9 | Drawing (pdf) |
| H-413 | 50 gallons | 56 | 30 | 10 | Drawing (pdf) |
| H-499 | 50 gallons | 56 | 35 | 9 | Drawing (pdf) |
| H-431 | 50 gallons | 61 | 40 | 6.75 | Drawing (pdf) |
| H-579 | 50 gallons | 65 | 29 | 8.25 | Drawing (pdf) |
| H-497 | 55 gallons | 54 | 34 | 9 | Drawing (pdf) |
| H-434 | 55 gallons | 56 | 35 | 9 | Drawing (pdf) |
| H-438 | 55 gallons | 56 | 36 | 9 | Drawing (pdf) |
| H-268 | 60 gallons | 60.5 | 33 | 9 | Drawing (pdf) |
| H-581 | 65 gallons | 60 | 32 | 10.5625 | Drawing (pdf) |
| H-580 | 67 gallons | 62 | 33.5 | 10.125 | Drawing (pdf) |
| H-524 | 76 gallons | 64 | 46 | 8.25 | Drawing (pdf) |
| H-544 | 80 gallons | 37 | 22.5 | 18.75 | Drawing (pdf) |
Why Choose One Clarion's RV Black Water Tanks?
- Unmatched Durability and Leak-Proof Performance: One Clarion's RV black water tanks are expertly crafted using high-quality materials and advanced roto-mold manufacturing techniques. With a seamless design and robust construction, these tanks are engineered to endure the demands of RV travel and eliminate leaks, offering you peace of mind and a worry-free experience.
- Extremely durable:You won't find a stronger tank on the market. Rotomolded to perfection, your tank will give a lifetime of leak free performance.
- Leak Free: Because these tanks are made with on single piece of poly, they do not have any seams to crack or break. They will withstand the rigors of road travel with ease. And, they're also easier to clean and maintain, with no seams to catch debris.
- Customizable Sizing and Configuration: Embracing the diversity of RV black water tank models and layouts, we offer a versatile range of sizes and configurations. Whether you have a compact camper or a spacious motorhome, our selection of black water tanks can be tailored to meet your specific needs.
- Dedicated Customer Support: Our knowledgeable team is wholly devoted to providing exceptional customer support throughout your entire journey. From selecting the ideal tank to offering installation assistance and ongoing maintenance tips, we are here to address your queries and ensure your black water tank operates flawlessly.
Rotomolded Tanks for RV Black Water Tanks: The Superior Choice for Durability
By choosing a rotomolded tank for your RV, you are investing in a durable, reliable, and efficient solution. These tanks provide the peace of mind and performance you need to enjoy your RV adventures without worrying about tank failures or maintenance issues. Their unique manufacturing process and inherent qualities make them the ideal solution for RV water and waste storage.
- Unparalleled Durability: Our rotomolded tanks are meticulously crafted using a revolutionary rotational molding process, resulting in an exceptionally sturdy, one-piece construction. Built to withstand impacts, vibrations, and the roughest road conditions, these tanks surpass others in durability, without the risk of cracking, splitting, or weak spots.
- Seamless Integrity: Experience the advantage of seamless design with our rotomolded tanks. The absence of seams or joints minimizes the likelihood of leakage, cracks, or weak points, ensuring a secure and contamination-free storage environment for your water or waste materials.
- Resilience Against Corrosion and Chemicals: Our rotomolded tanks are engineered to withstand exposure to a wide range of chemicals, including common cleaning agents and wastewater treatments used in RVs. With exceptional resistance to corrosion, these tanks guarantee long-term reliability and performance.
- Lightweight and Space-Efficient: Weight and space considerations are crucial in RVs, and our rotomolded tanks excel in both aspects. Compared to alternative tank materials, they are lightweight, reducing the overall weight of your RV. Additionally, their flexible design allows for custom sizes and shapes, optimizing the utilization of available space in your vehicle.
- Effortless Cleaning and Maintenance: Cleaning and maintaining our rotomolded tanks is a breeze. The smooth interior surfaces prevent waste buildup and facilitate easy cleaning using standard RV tank cleaning products. This convenience ensures improved hygiene and a hassle-free maintenance experience.
- Versatility Tailored to Your Needs: Our rotomolded tanks offer unmatched versatility, catering to various RV applications. Whether you require a freshwater tank, a black water tank, a gray water tank, or a combination of them, our tanks can be customized to meet your specific requirements. Their adaptability ensures compatibility with different RV models and layouts.
- UV and Weather Endurance: RVs face diverse weather conditions, including prolonged sunlight exposure. Our rotomolded tanks are UV resistant, maintaining their integrity and aesthetic appeal over time. Rest assured, your tank will withstand the elements and retain its longevity.
At One Clarion, we are fully dedicated to delivering top-quality RV black water tanks that surpass the highest industry standards. With our robust, leak-free, and low-maintenance tanks, you can enjoy worry-free waste management during your RV adventures.
Experience the utmost strength, dependability, and flexibility you deserve with our outstanding selection of custom RV water tanks. Connect with us today to explore our range of RV black water tanks, consult with our knowledgeable team, and discover the perfect solution for your RV waste management needs. Trust One Clarion for reliable and efficient black water tank tanks that elevate your RV experience.
Other Products
 |
 |
 |
